/ TECHNICAL INFORMATION
DETAILS THAT
MAKE THE DIFFERENCE.
Original size charts, product specifications and process flow from Dajin.
Find your tube requirements.
The company profile lists precision seamless tubes from ID 40–400 mm and telescopic hydraulic cylinder tubes from OD 40–250 mm. The homepage also mentions a 40–800 mm range without a clear dimensional definition. Confirm the applicable range with Dajin for your product.

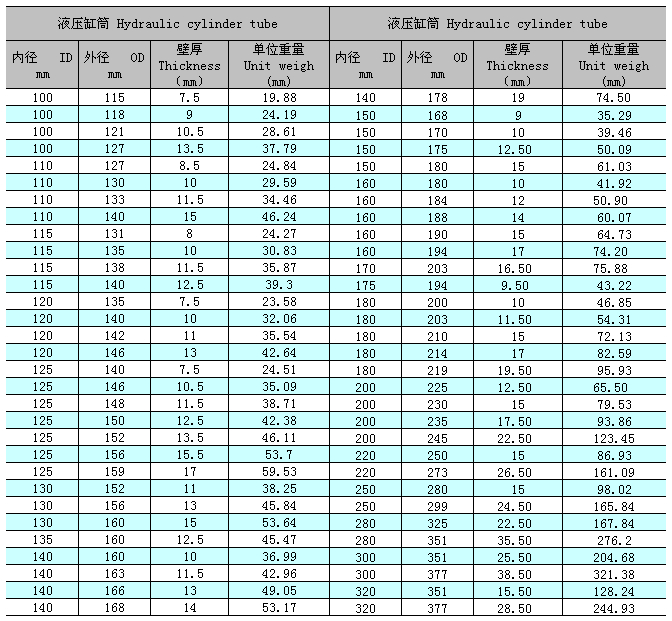

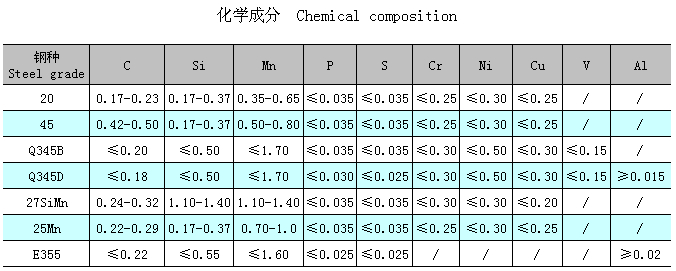

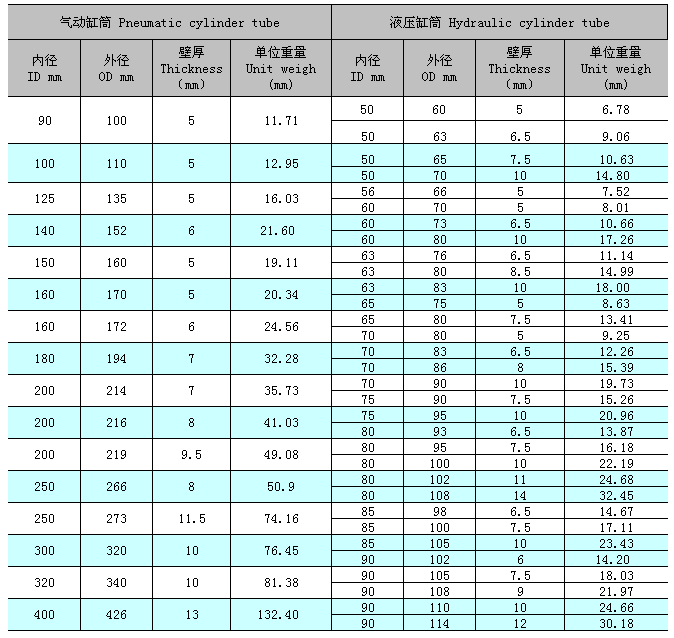

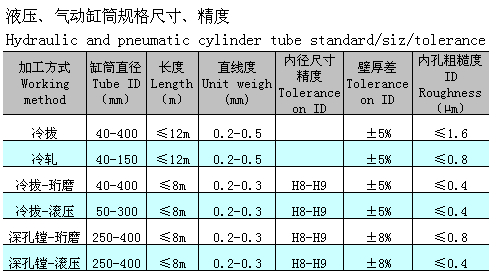

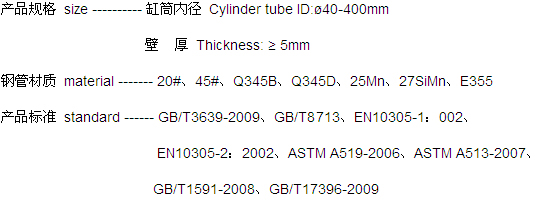

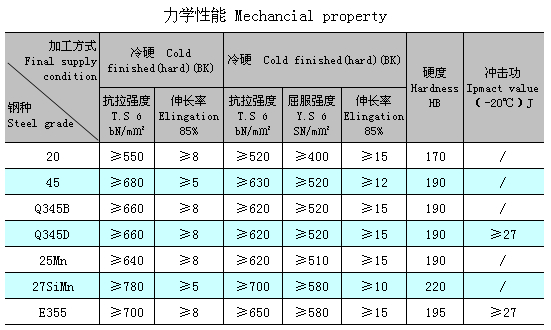

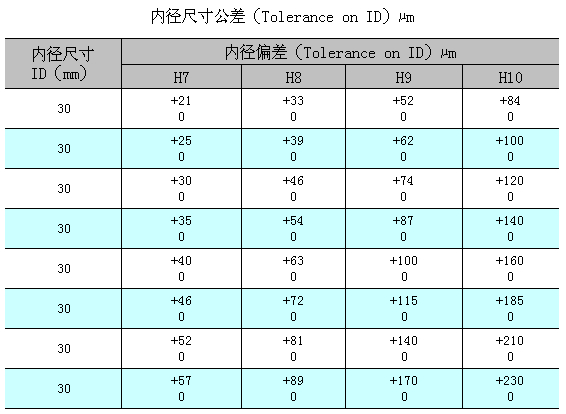

Product sizes
Original Dajin technical document · Open an image to view at full size.

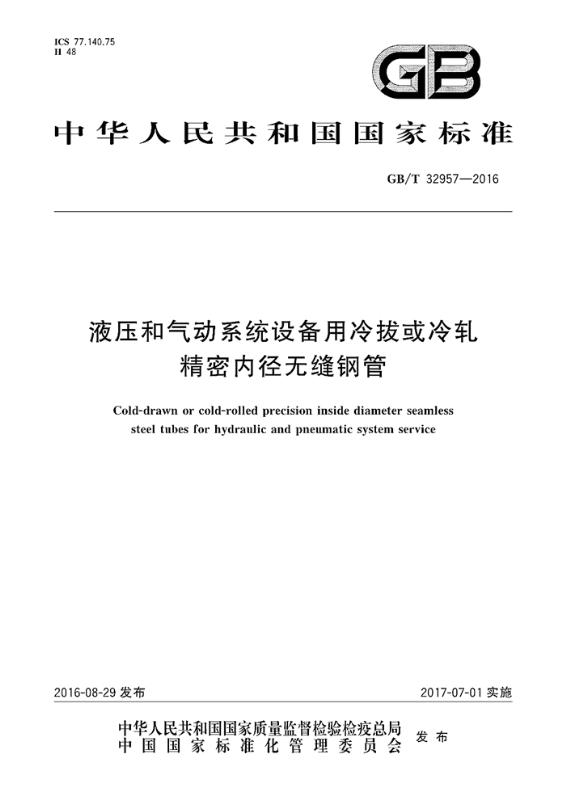

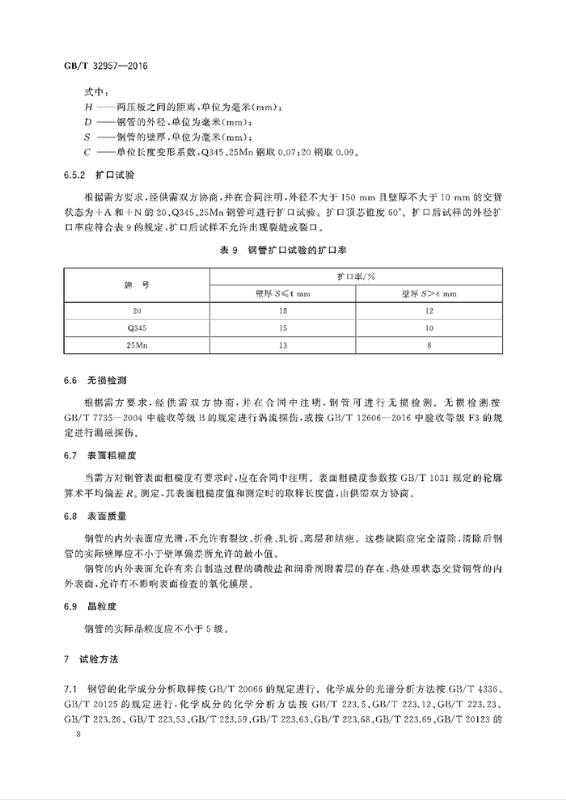

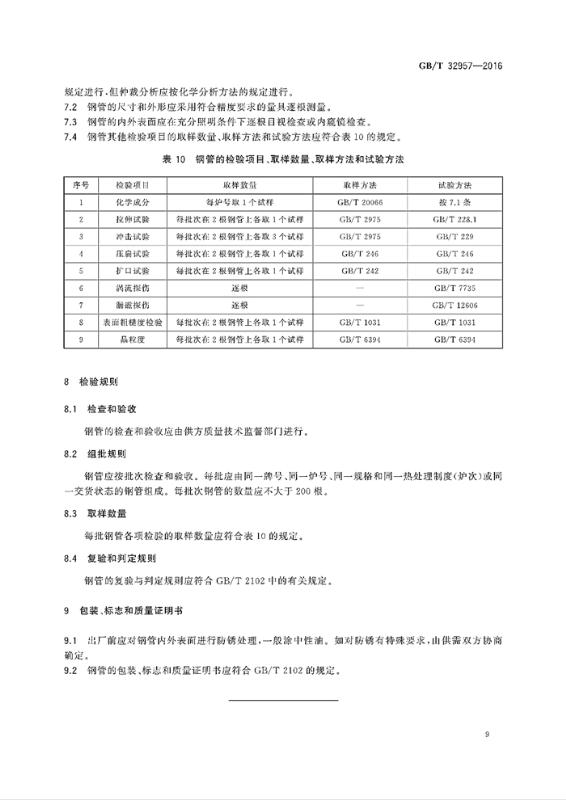

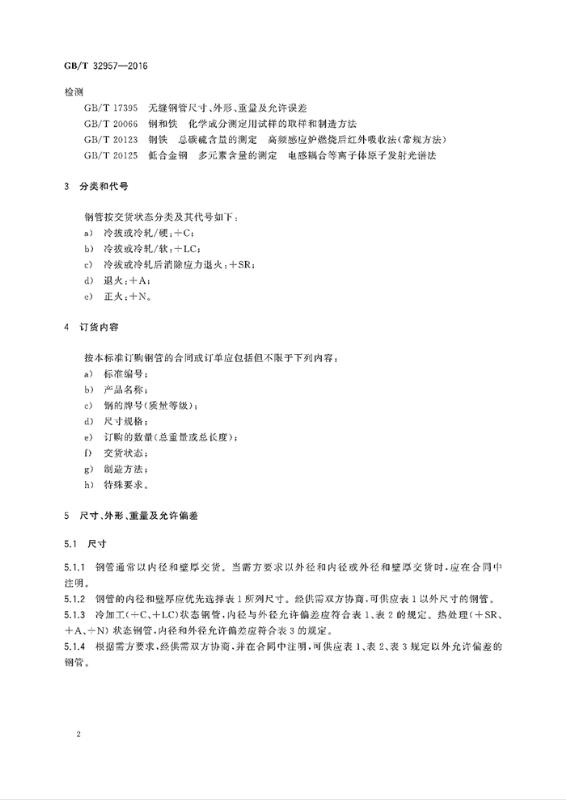

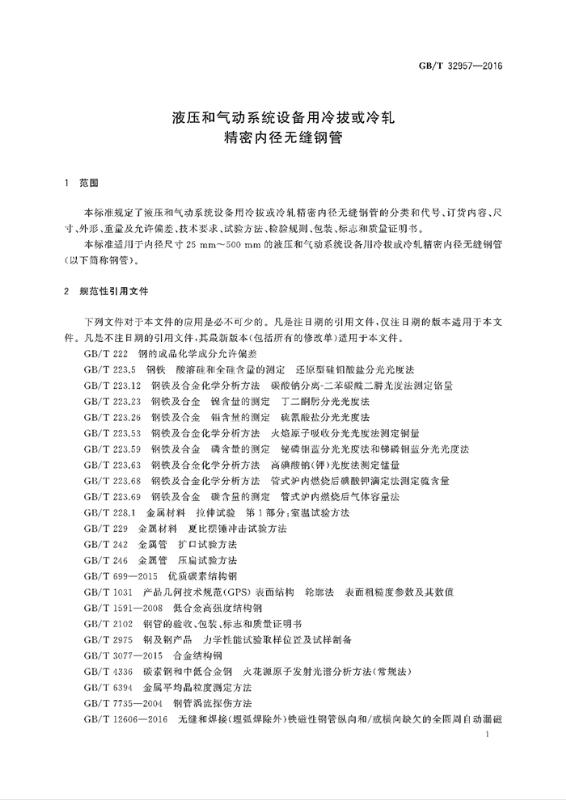

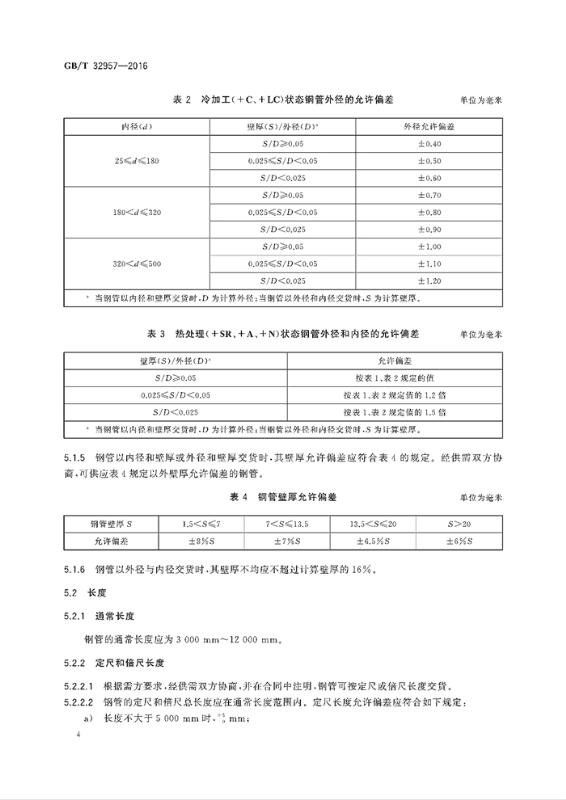

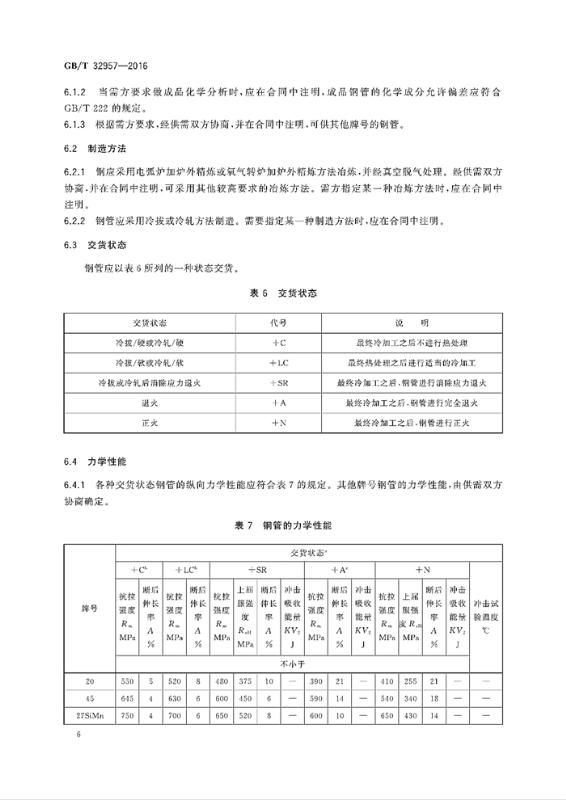

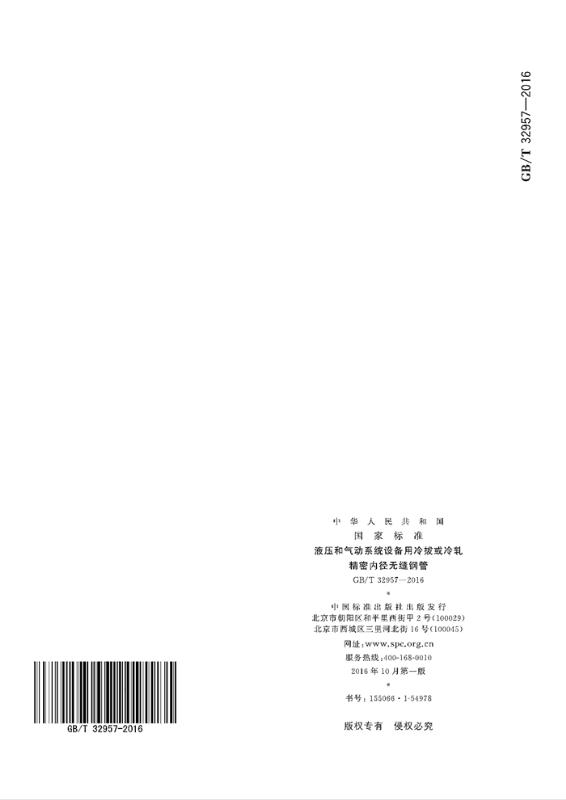

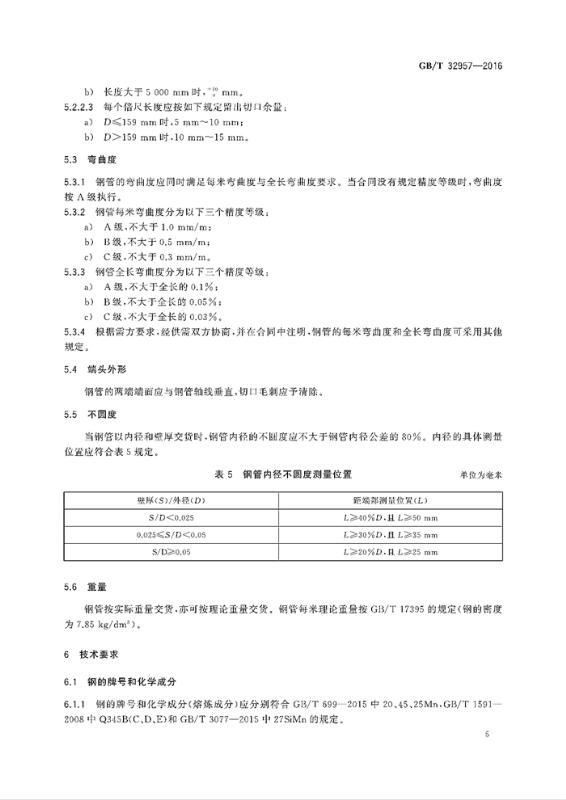

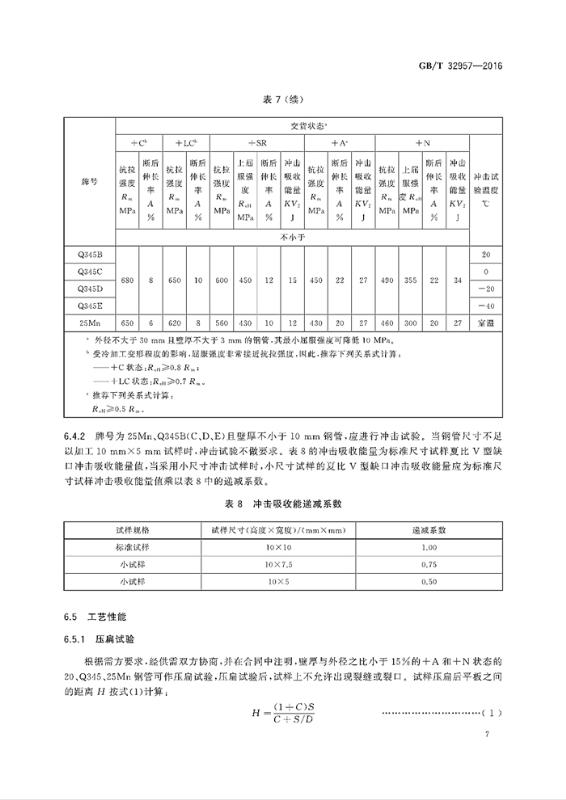

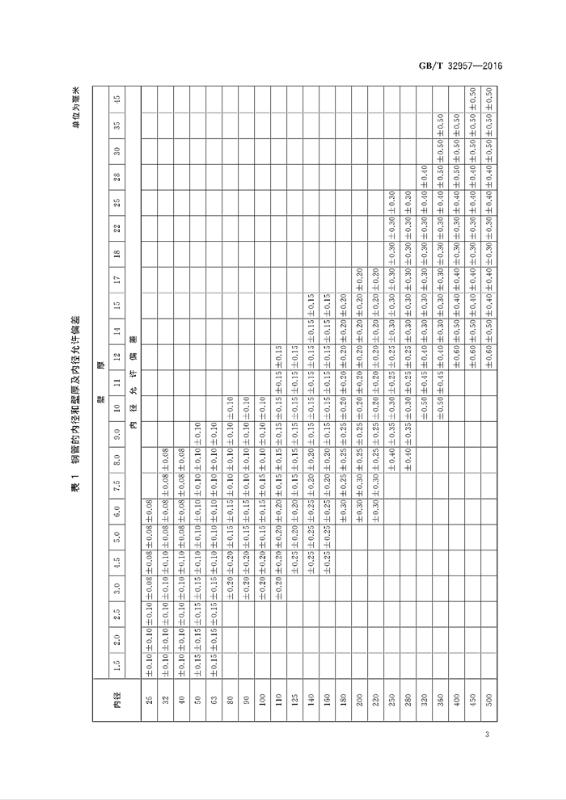

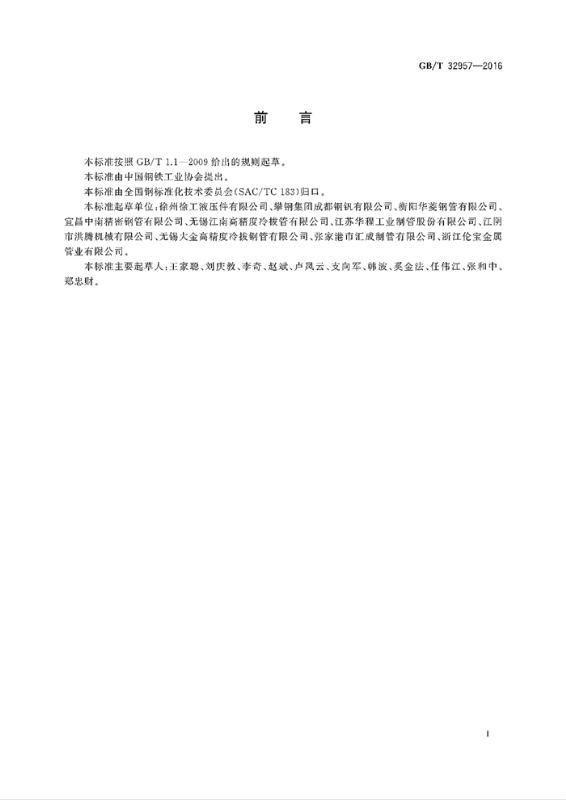

Product specifications
Original Dajin technical document · Open an image to view at full size.

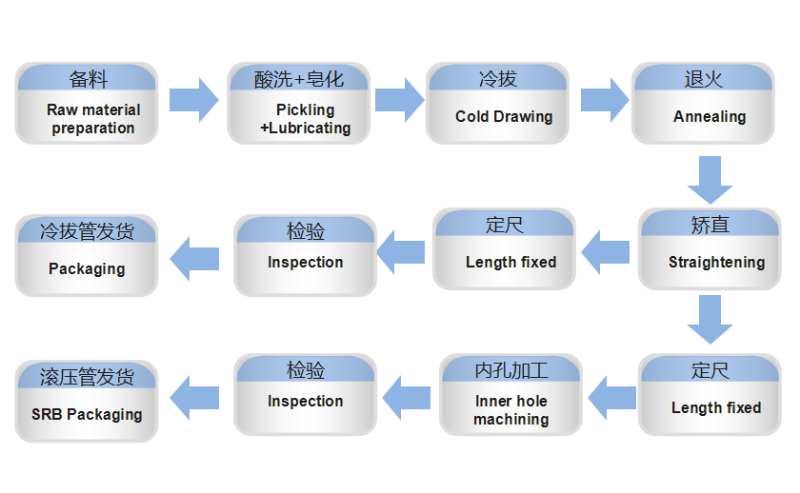

Process flow
Original Dajin technical document · Open an image to view at full size.
